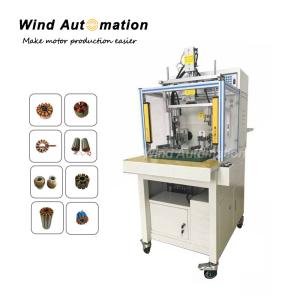

This rotor winding machine can do both distributed winding or centralized winding. The nozzle adopts tungsten steel to insure high slot winding quality. With 2 stations, it can wind two stators with a slot width within 0.5~0.8mm automatically.

(1)Specification

Working station	2
Stator OD	7~100mm
Stack length	5~70mm
Slot number	2~36
Wire diameter	0.06~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Power supply	AC 220 V, 50HZ
Dimension	850x800x1600mm
Weight	280KG

(2)Application
It is suitable for drone flyer rotor, enconder resolver rotors, or other external rotors.

(3)Features
2 working stations to do synchronous winding
Tungsten steel nozzle
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
Provide customized service

(4) Stators after winding
