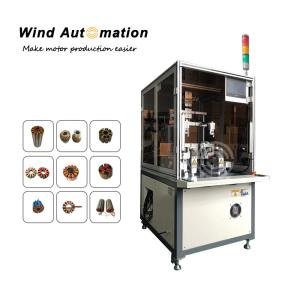

This external rotor winding machine is suitable for aerospace motor, twisting car motor rotor to do slot coil winding. It can do both distributed winding or centralized winding. With 2 stations, it can wind two stators with a slot width within 0.5~0.8mm automatically.

(1)Features
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
2 working stations to do synchronous winding
Tungsten steel nozzle
Provide customized service

(2)Specification

Working station	2
Stator OD	7~100mm
Stack length	5~70mm
Slot number	2~36
Wire diameter	0.06~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Power supply	AC 220 V, 50HZ
Dimension	850x800x1600mm
Weight	280KG

(3)Application
It is suitable for aerospace motor, twisting car motor, and other external rotors.
