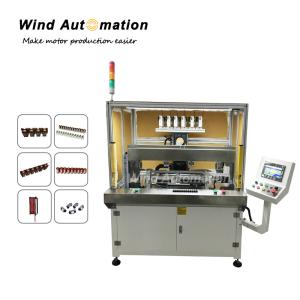

Straight Bar Linear Segment Stator Needle Winding Machine
This type of needle winding machine is designed for stators with narrow slot but high slot filling rate. During winding, turn number in each layer can be flexibly changed to meet different requirements of various model types. (1) Features
Friendly designed operator's interface 2 working stations to do synchronous winding
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service
(2) Specification | Working station | 2 |
| Stator OD | Max 400mm |
| Stack length | Max 100mm |
| Stator weight | Max 3KG |
| Wire range | 0.1-0.8mm |
| Winding speed | 600rpm |
| Power | 8 KW |
| Air source | 0.4~0.7 MPa |
| Power supply | AC 380±10, 50/60HZ |
| Dimension | 1100x800x2000mm |
| Weight | 900KG |
(3) Application
It is suitable for various kinds of open slot stators with high slot filling rate.
(4) For Winding Machine price
Segmented stator winding details is needed
(4) For Winding Machine WIND-ZR158 cycle time
1) 0.19mm wire size, 600 turns per slot, 12 slots, 2pcs/7minutes
2) 0.56mm wire size, 68turns per slot, 9slots, 2pcs/1.5minutes
